Light-Truck, Truck and Bus Tyres

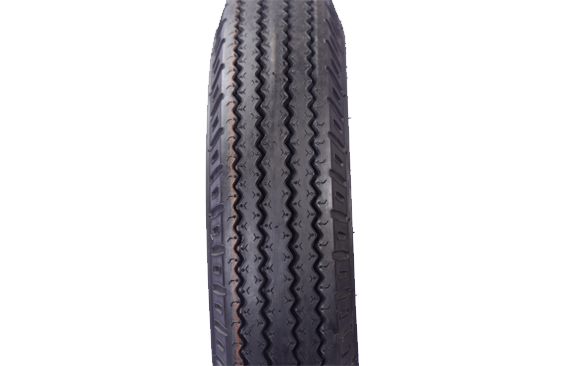

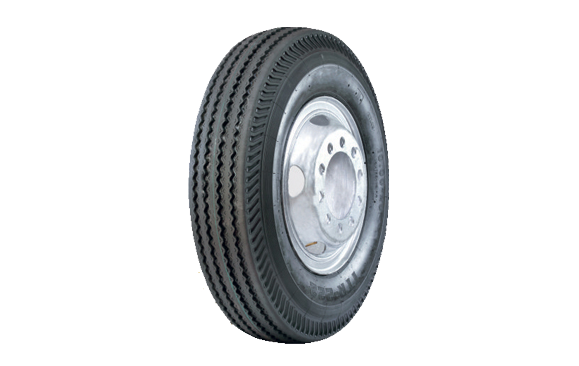

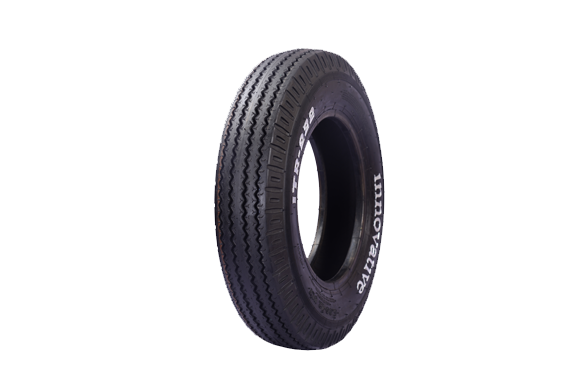

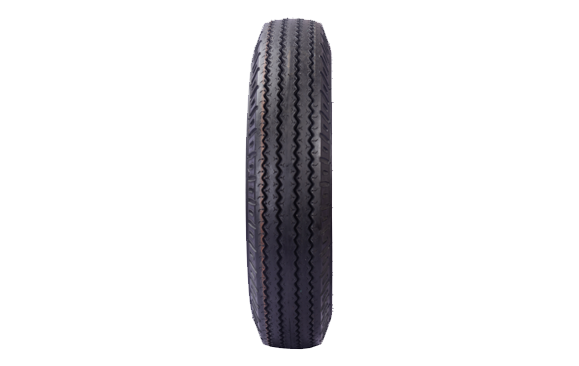

ITR-222 (RIB)

Features

  • Special Tread with Dual Radius
  • Premium Tread compound
  • Optimized and effective design
  • Special Deep Tread Profile
  • Strong Casing and Side walls

Benefits

  • Reduced and Smooth wear
  • Durable and long running life
  • Consistent high performance for medium loads
  • Great Mileage Performance
  • Excellent Structural Durability gives better load carrying capacity
  • Better retrads
Tyre Size Ply Rating Application Pattern Section Width mm Overall Dia. mm Non Skid Depth mm Maximum Load Cold Inflation Pressure
Single Dual Single Dual
7.50-16 16 Light Truck ITR-222 222 830 12.5 1580 1390 110 760 110 760
5.00-12 ULT 8 Ultra-light Truck ITR-222 (RIB) 137 568 8.5 487 462 58 400 58 400
6.50-14 8 Light Truck ITR-222 (RIB) 182 705 10.5 840 795 62 425 62 425
6.50-15 8 Light Truck ITR-222 (RIB) 175 725 11.5 875 835 62 425 62 425
6.50-15 10 Light Truck ITR-222 (RIB) 175 725 11.5 970 920 73 500 73 500
7.00-15 10 Light Truck ITR-222 (RIB) 205 760 11.5 1050 925 75 515 75 515
7.00-15 12 Light Truck ITR-222 (RIB) 205 760 11.5 1175 1030 90 620 90 620
7.50-15 14 Light Truck ITR-222 (RIB) 215 780 13.0 1450 1375 94 650 94 650
7.00-16 12 Light Truck ITR-222 (RIB) 200 796 12.5 1215 1065 90 620 90 620
7.00-16 14 Light Truck ITR-222 (RIB) 200 796 12.5 1315 1160 100 690 100 690
7.50-16 12 Light Truck ITR-222 (RIB) 222 830 12.5 1405 1240 90 620 90 620
7.50-16 14 Light Truck ITR-222 (RIB) 222 830 12.5 1495 1315 100 690 100 690
7.50-16 (DB) 16 Light Truck ITR-222 (RIB) 222 830 12.5 1580 1390 110 760 110 760
8.25-16 16 Light Truck ITR-222 (RIB) 235 860 14.0 1850 1750 110 760 110 760
8.25-20 16 Truck and Bus ITR-222 (RIB) 236 974 14.0 2300 2000 120 825 110 760
9.00-20 16 Truck and Bus ITR-222 (RIB) 262 1035 14.0 2650 2325 115 795 105 725
10.00-20 16 Truck and Bus ITR-222 (RIB) 280 1065 15.5 3000 2630 115 795 105 725
10.00-20 (TB) 16 Truck and Bus ITR-222 (RIB) 280 1065 15.5 3000 2630 115 795 105 725
10.00-20 18 Truck and Bus ITR-222 (RIB) 280 1065 15.5 3080 2700 120 825 110 760
10.00-20 (TB) 18 Truck and Bus ITR-222 (RIB) 280 1065 15.5 3080 2700 120 825 110 760
11.00-20 16 Truck and Bus ITR-222 (RIB) 300 1090 15.0 3265 2865 115 795 105 725
11.00-20 18 Truck and Bus ITR-222 (RIB) 300 1090 15.0 3355 2945 120 825 110 760
