Special Purpose Tyres

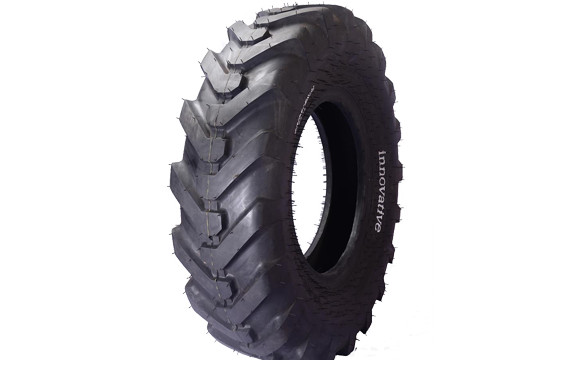

G2 Grader

Tyre Size Ply Rating Application Pattern Section Width mm Overall Dia. mm Non Skid Depth mm Tyre Weight Kgs Maximum Load Cold Inflation Pressure
Single Dual Single Dual
(Kgs.) (Kgs.) (psi) (kPa) (psi) (kPa)
13.00-24 12 Industrial/Grader G2 (GRADER) 350 1295 21.0 72.00 3000 (at 50 kmph) 44 300 5600 (at 10 kmph) 65 450
13.00-24 16 Industrial/Grader G2 (GRADER) 350 1295 21.0 72.00 3580 (at 50 kmph) 58 400 6500 (at 10 kmph) 87 600
14.00-24 12 Industrial/Grader G2 (GRADER) 380 1350 24.5 --- 3350 (at 50 kmph) 40 275 6300 (at 10 kmph) 62 425
14.00-24 16 Industrial/Grader G2 (GRADER) 380 1350 24.5 81.00 4000 (at 50 kmph) 54 375 7300 (at 10 kmph) 80 550
