Special Purpose Tyres

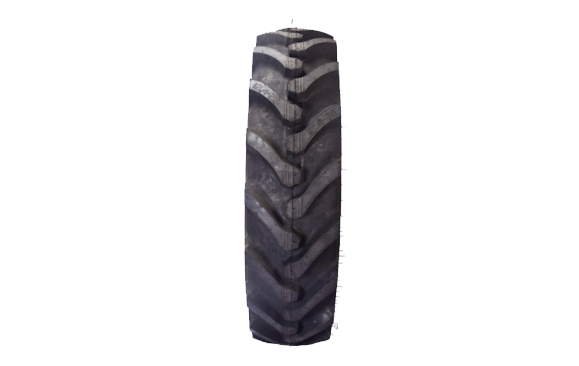

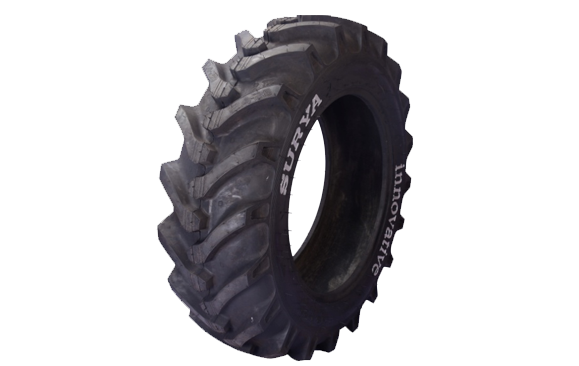

Surya Tractor Rear

Features

  • Deep lugs and Flat Treads
  • Special Rigid Shoulder Lugs
  • Strong Casing
  • 45 Degree knife action Lugs

Benefits

  • Good traction on field and on the road
  • Great cut resistance for longer life
  • Better retreadability
  • Control on soil compaction gives greater comfort
Tyre Size Ply Rating Application Pattern Section Width mm Overall Dia. mm Non Skid Depth mm Tyre Weight Kgs Maximum Load Cold Inflation Pressure
Single Dual Single Dual
(Kgs.) (Kgs.) (psi) (kPa) (psi) (kPa)
12.4-24 8 Agriculture Equipment R1 (SURYA) 335 1155 28.0 41.92 1450 --- 33 230 --- ---
12.4-24 10 Agriculture Equipment R1 (SURYA) 335 1155 28.0 42.52 1635 --- 42 290 --- ---
12.4-24 12 Agriculture Equipment R1 (SURYA) 335 1155 28.0 43.09 1820 --- 50 350 --- ---
12.4-28 12 Agriculture Equipment R1 (SURYA) 322 1280 38.0 54.18 1650 --- 36 250 --- ---
13.6-28 12 Agriculture Equipment R1 (SURYA) 354 1336 38.0 62.96 1800 --- 33 230 --- ---
14.9-28 10 Agriculture Equipment R1 (SURYA) 378 1365 36.0 73.57 2000 --- 30 210 --- ---
14.9-28 12 Agriculture Equipment R1 (SURYA) 378 1365 36.0 74.57 2120 --- 33 230 --- ---
16.9-30 12 Agriculture Equipment R1 (SURYA) 450 1495 38.0 93.67 2800 --- 35 240 --- ---
16.9-30 14 Agriculture Equipment R1 (SURYA) 450 1495 38.0 94.87 3150 --- 52 360 --- ---
16.9-28 10 Agriculture Equipment R1 (SURYA) 435 1465 34.0 83.80 2430 --- 29 200 --- ---
16.9-28 12 Agriculture Equipment R1 (SURYA) 435 1465 34.0 84.80 2725 --- 35 240 --- ---
16.9-28 14 Agriculture Equipment R1 (SURYA) 435 1465 34.0 86.48 2895 --- 39 270 --- ---
16.9-28 14 Agriculture Equipment R1 (SURYA) 435 1465 34.0 86.48 2895 --- 39 270 --- ---
18.4-30 (low weight) 12 Agriculture Equipment R1 (SURYA) 450 1495 35.0 101.00 3250 --- 33 230 --- ---
18.4-30 12 Agriculture Equipment R1 (SURYA) 470 1565 38.0 116.21 3250 --- 33 230 --- ---
18.4-30 12 Agriculture Equipment R1 (SURYA) 470 1565 38.0 117.21 3450 --- 37 260 --- ---
23.1-30 12 Agriculture Equipment R1 (SURYA) 590 1710 43.0 160.00 3875 --- 25 172 --- ---
23.1-30 14 Agriculture Equipment R1 (SURYA) 590 1710 43.0 160.00 4250 --- 29 200 --- ---
